FRAX MB

FRAX MB

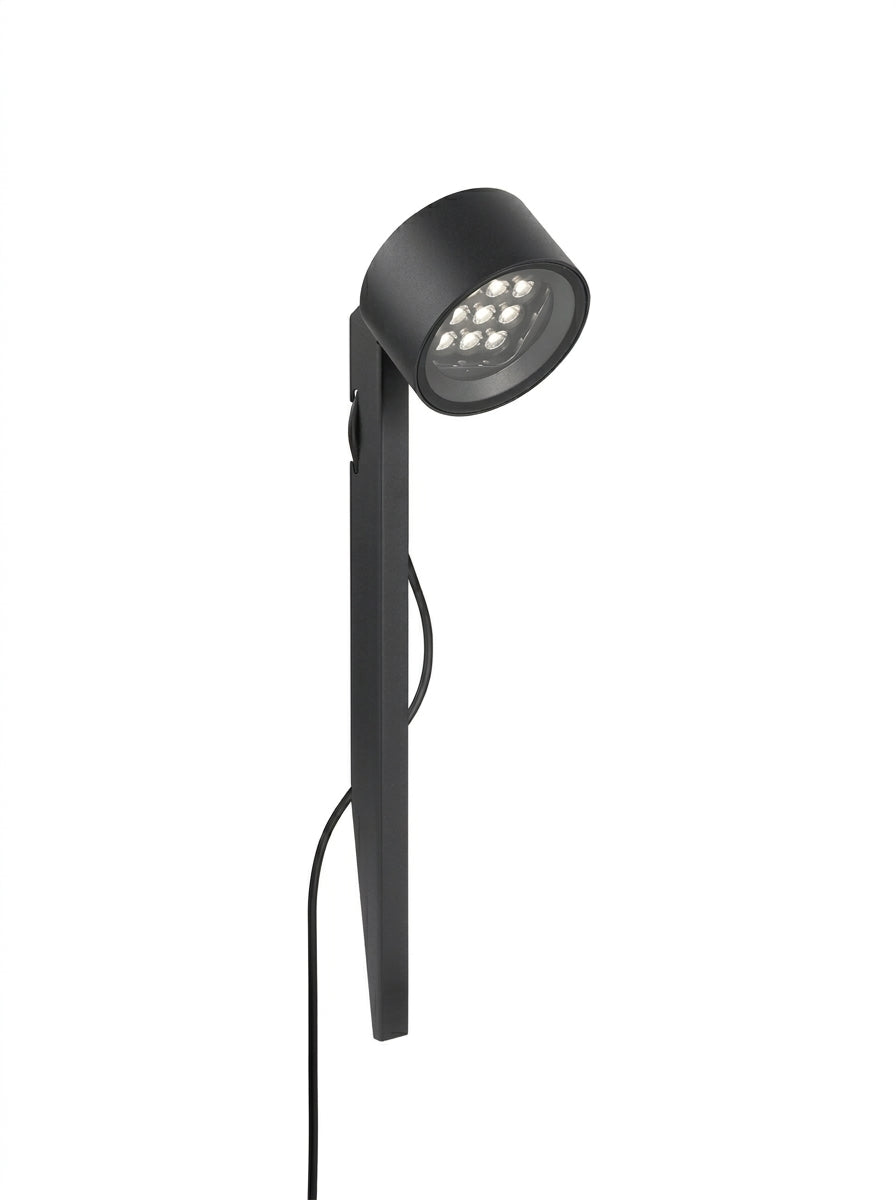

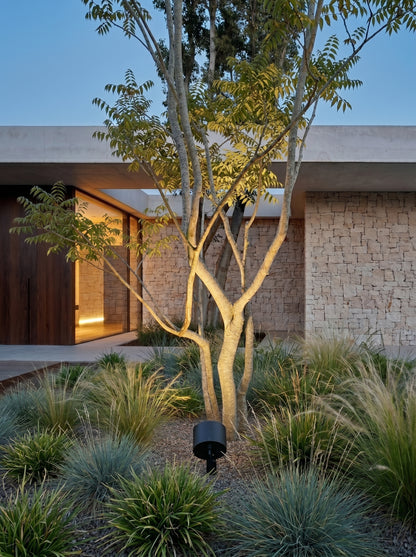

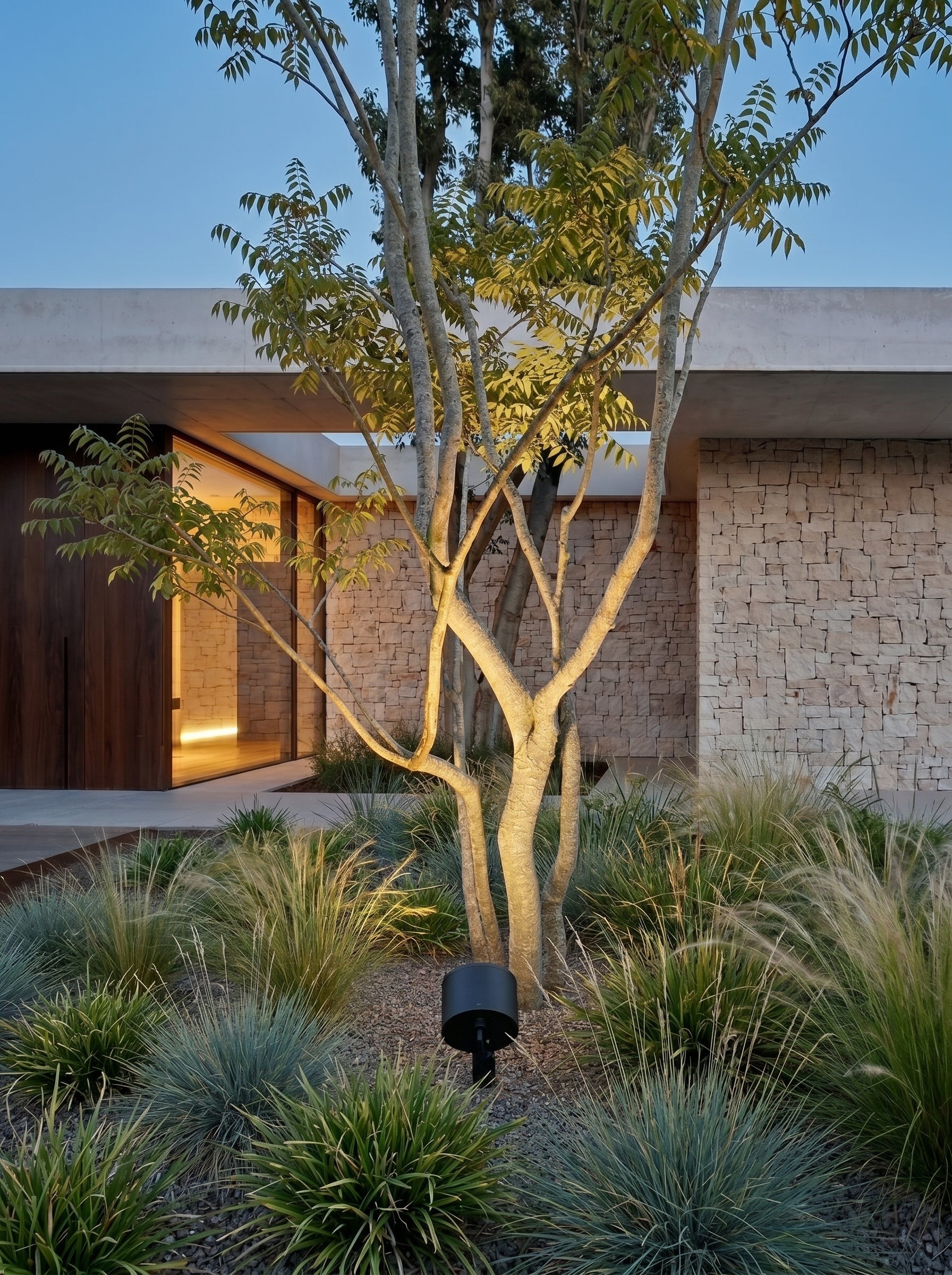

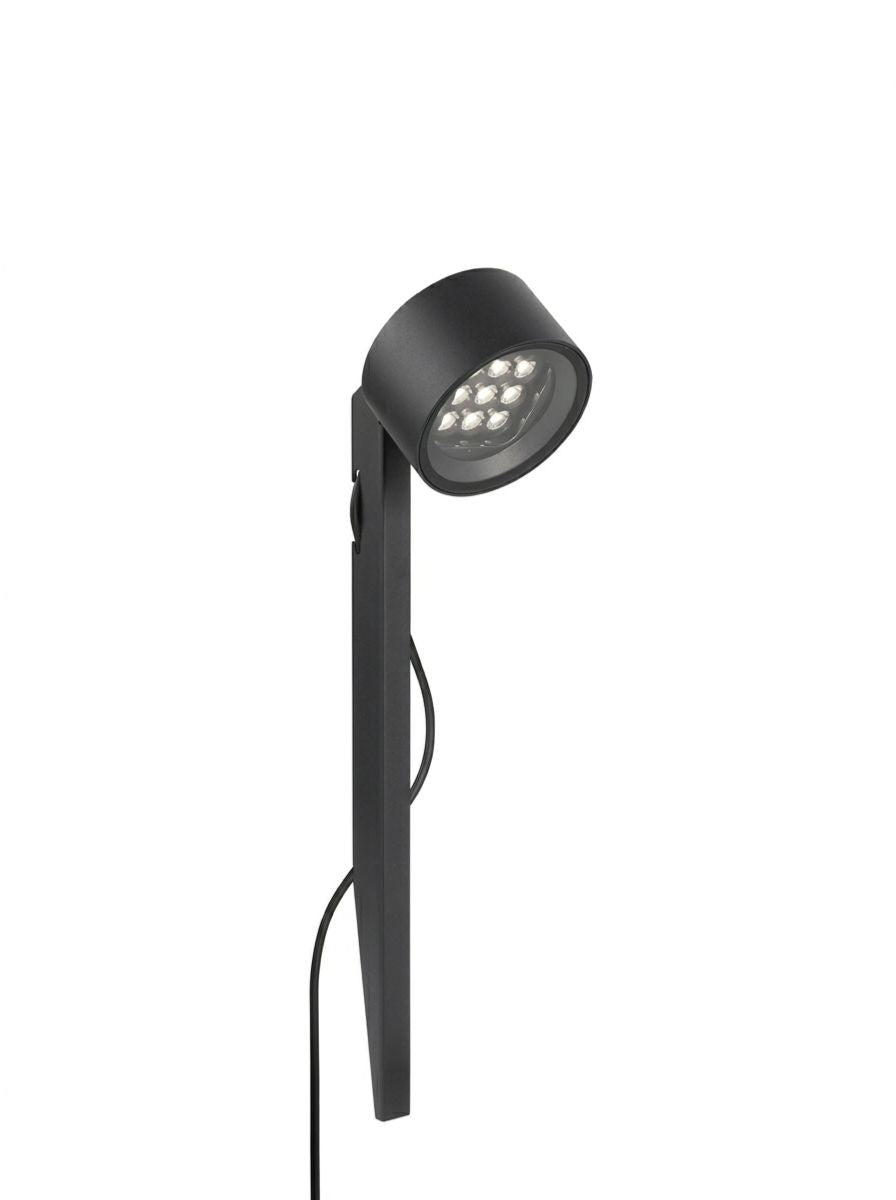

FRAX MB is a powerful outdoor projector designed for architectural and landscape lighting with a refined visual presence. Its broad 47° beam creates a generous, controlled light effect for illuminating façades, trees, walls, planting zones and outdoor structures.

The adjustable projector body can be tilted and rotated on site, allowing the light to be aimed precisely where it is needed. Delta Light’s optical design combines multiple LEDs with individual lenses to create a clean and consistent light distribution.

Choose FRAX MB when you need strong, flexible outdoor lighting for demanding exterior environments, with a robust IP65 and IK08 construction and a minimal architectural appearance.



SKU: GPL FRXM 27 ANT 47



FRAX MB

€744,99
€744,99
SAVE Liquid error (snippets/price line 112): Computation results in '-Infinity'% Sold out
  • Maestro
  • Mastercard
  • PayPal
  • Visa
  • Bancontact
Levertijd: 4 tot 8 weekdagen
View full details

Product specifications

Light Characteristics

Light source Integrated LED array
Lum. output 1696lm

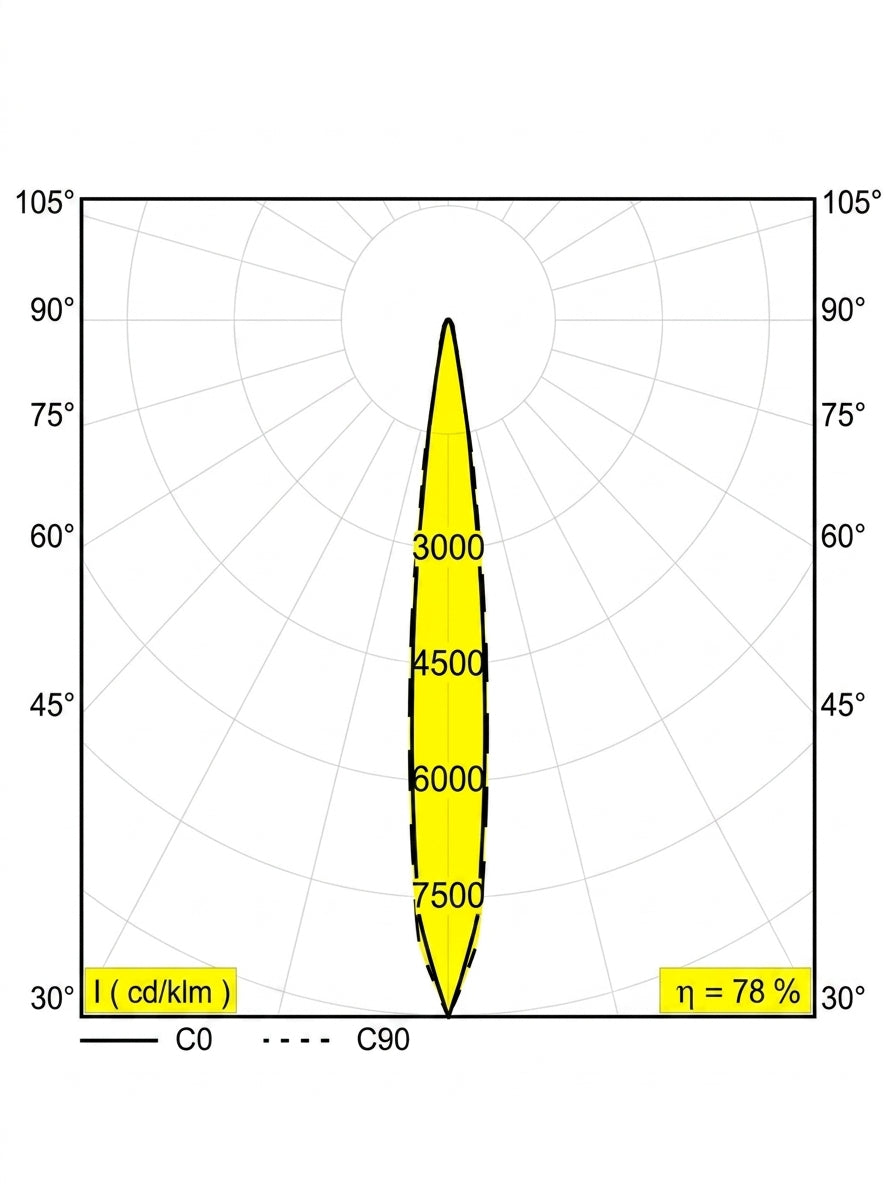

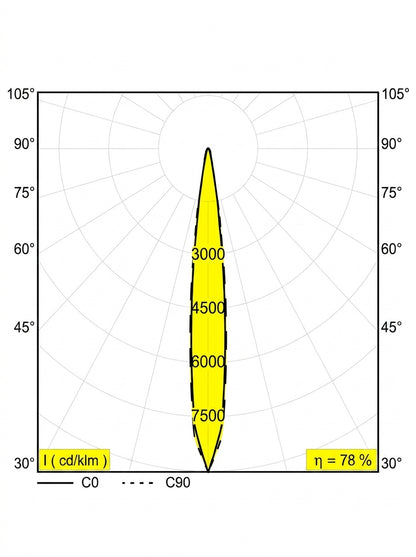

Beam angle 47°
Colour temperature 2700K / 3000K
Colour rendering CRI >90, R9 = 50
Colour consistency SDCM3
Adjustability 120° tiltable, 360° rotatable

Electrical Specs

Power consumption 26.9W
Power supply 220–240V / 50–60Hz
Required driver Internal LED power supply 900mA DC
Electrical class Class I
Dimmable No
Cable included H05 RN-F 3 x 1mm², L = 2m

Installation & materials

Application Outdoor
Mounting Ground pin / floor surface mounted

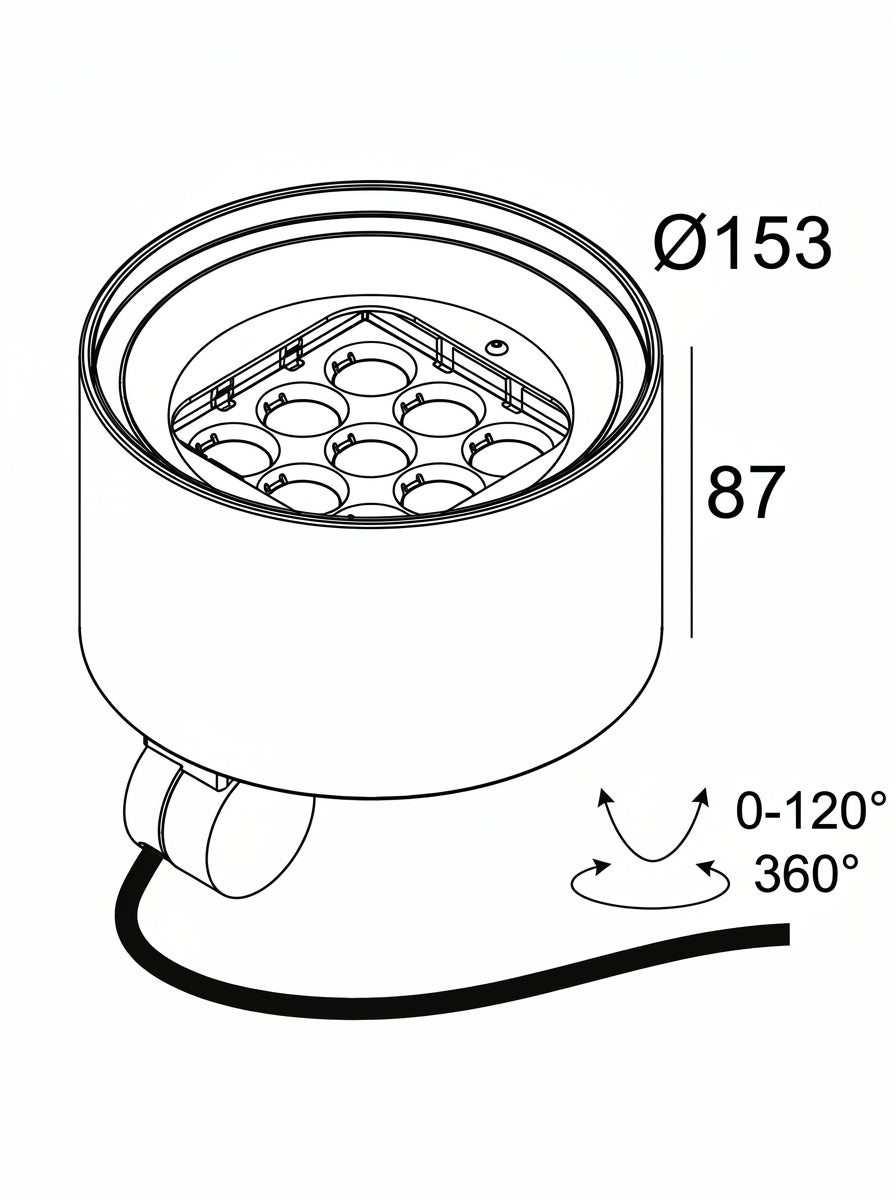

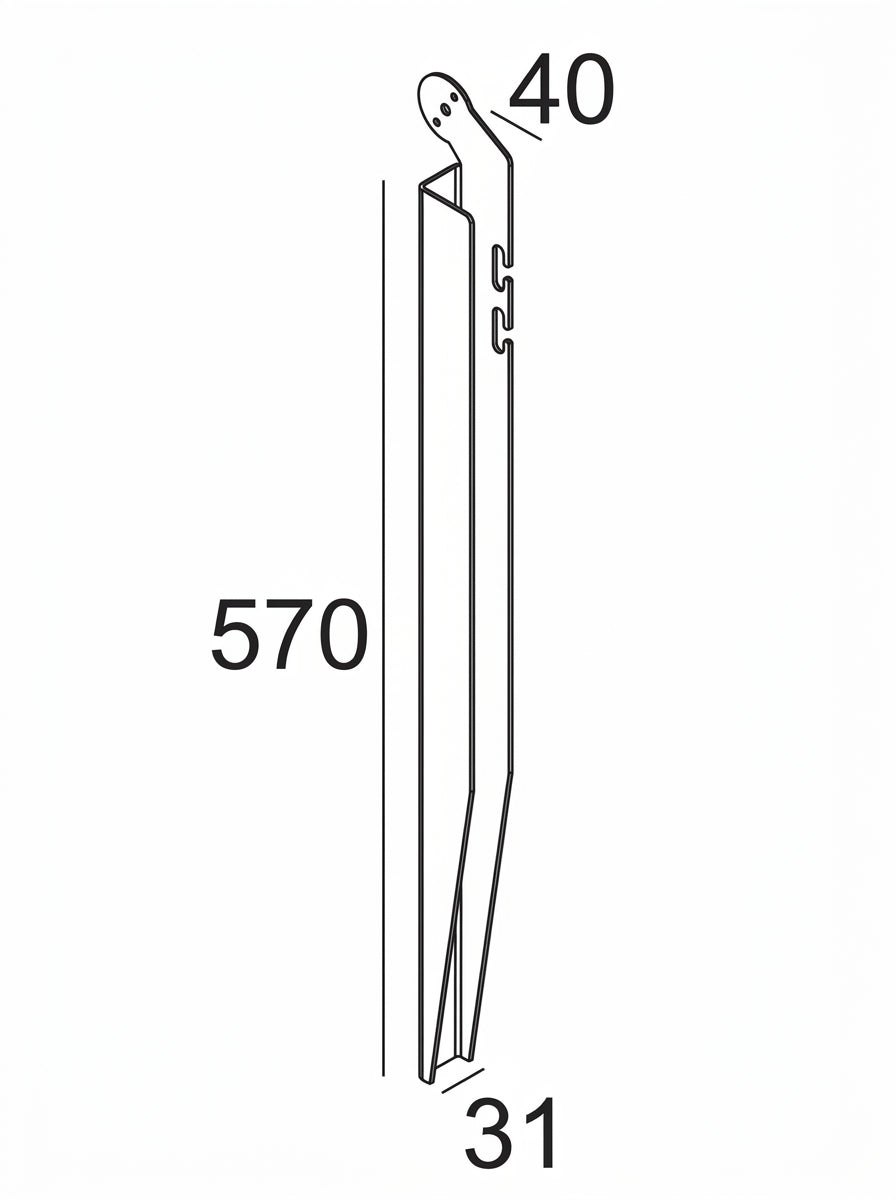

Dimensions H 570 mm × L 87 mm × Ø 153 mm
IP rating IP65
Mech. impact protection IK08
Material Powder-coated aluminium

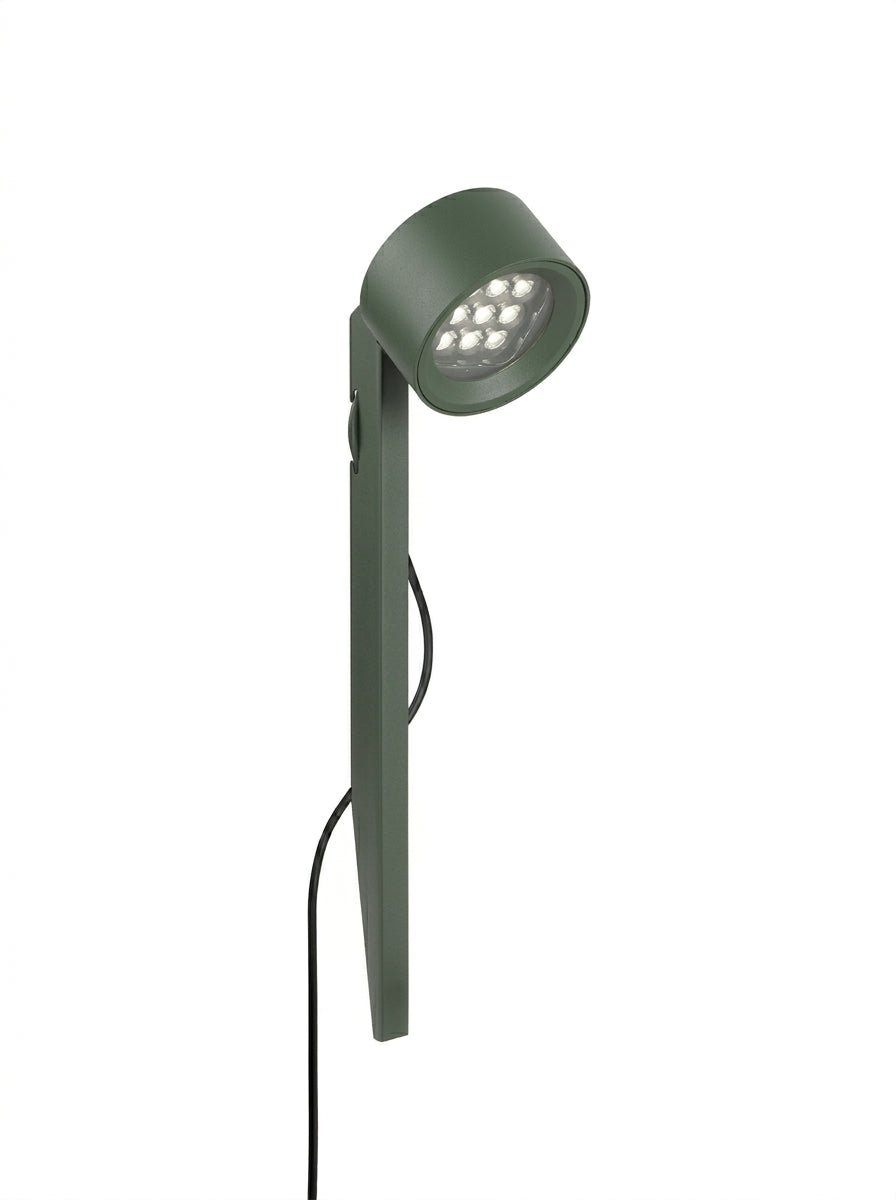

Finish Anthracite / Pine Green
Weight 2.1 kg

Compliance & sustainability

Certificates CB, ENEC, EPD, RCM
Warranty 5 years
Energy label E
Light source replaceable No
Driver replaceable No, internal driver
